Understanding Drone Battery Plugs
Drone battery plugs are the crucial connectors that transfer power from the battery to the drone. These small components ensure a secure, efficient electrical connection for safe flights. Choosing the right plug type and maintaining it properly is essential for both performance and safety.

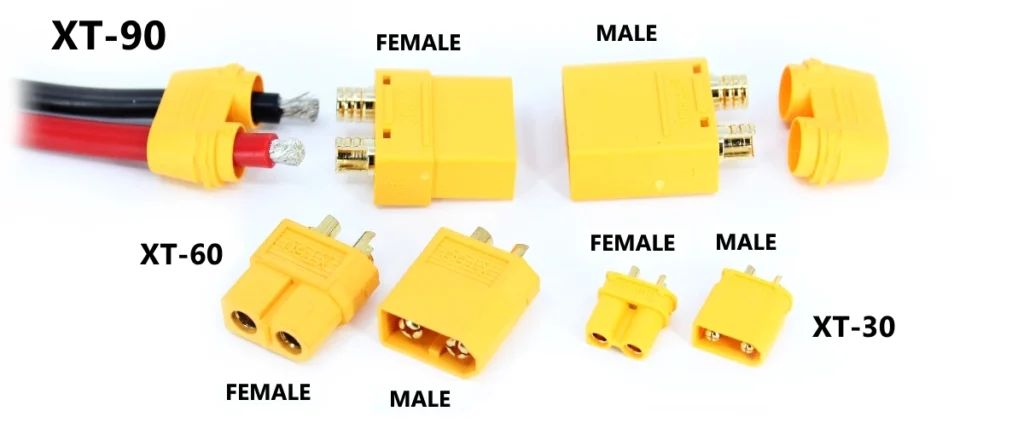

Common Drone Battery Plug Types
- XT60: The most common plug for hobby and mid-sized drones. Features bullet-style pins with a plastic housing for safety.
- XT90: Larger version of XT60, designed for higher current applications.
- Deans (T-connector): Popular in racing drones for its low resistance and compact design.
- JST-XH: Used primarily for balance charging rather than main power delivery.
- XT30: Smaller plug for micro drones and indoor models.
- EC3/EC5: Common in RC aircraft, with EC5 supporting very high currents.
Key Features to Consider
When selecting a drone battery plug, consider:
- Current rating: Higher C-rating batteries require plugs designed for higher currents
- Plug compatibility: Ensure your charger, drone, and battery all use compatible connectors
- Low resistance: Quality plugs minimize power loss during high-demand flights
- Secure locking mechanism: Prevents accidental disconnections mid-flight
Proper Plug Maintenance
- Regular inspection: Check for bent pins, melting, or corrosion before each flight
- Clean connections: Use isopropyl alcohol to remove dirt and oxidation
- Avoid forceful connections: Align plugs properly before inserting
- Use strain relief: Prevent cable damage at the plug junction
- Replace worn plugs: Damaged connectors can cause power loss or safety hazards
Safety Considerations
- Always disconnect batteries when not in use
- Store batteries with plugs covered to prevent short circuits
- Use appropriate tools when changing plugs
- Never modify plugs beyond manufacturer specifications
Choosing the Right Plug
Consider your specific drone type and usage:
- Racing drones: Deans or XT60 plugs offer low resistance for high performance
- Commercial drones: XT90 or EC5 provide reliable connections for extended flights
- Micro drones: XT30 or smaller plugs reduce weight and space requirements
Troubleshooting Common Issues
- Intermittent power: Check for loose connections or damaged pins
- Overheating plugs: May indicate high resistance or incorrect plug size
- Balance charging problems: Verify JST-XH connector is properly seated
- Compatibility issues: Use quality adapters when mixing plug types
Future Developments
The industry continues to innovate with:
- New high-current connectors for advanced drones
- Integrated safety features in plug designs
- Wireless charging solutions for specific applications
- Standardization efforts to improve cross-compatibility
Understanding drone battery plugs is essential for every drone enthusiast. By selecting appropriate connectors, maintaining them properly, and following safety guidelines, you can ensure reliable power delivery and extend the lifespan of your drone batteries.
