Product Introduction

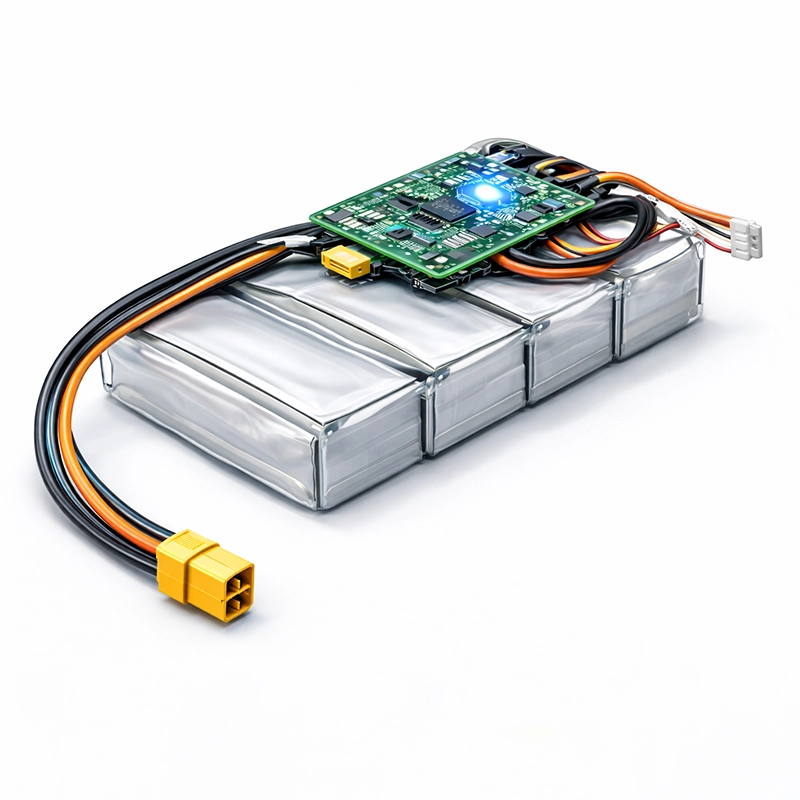

The Smart LiPo Battery Pack is a high-performance lithium polymer power solution professionally designed for UAVs, industrial drones, and aerial photography systems. With a 6S1P configuration, 22.2V nominal voltage, and 6000mAh rated capacity, this smart LiPo battery pack delivers a total energy of 133.2Wh to support stable and long‑endurance flight for various drone platforms. It supports a 20C continuous discharge current (120A) and 30C peak discharge current (180A, ≤10s), providing strong power output for high‑load drone motors and flight controllers. Built with premium high‑rate LiPo pouch cells, it ensures ≥300 charge cycles with 80% capacity retention and low internal resistance ≤10mΩ per cell for improved efficiency and safety.

Available with an aluminum case or PVC shrink housing, customizable dimensions, and flexible connector options including XT60 and XT90, this smart LiPo battery pack fits most commercial and industrial drones. It is widely used in aerial photography, mapping, inspection, and long‑flight industrial drone applications. The reliable structure, balanced charging design, and strict electrical performance make it a top choice for drone manufacturers, commercial flight teams, and industrial UAV operators seeking stable, safe, and high‑power smart LiPo battery solutions.

Key Features

• Smart 6S1P lithium polymer structure designed for high-performance UAV and industrial drones
• 22.2V nominal voltage and 6000mAh capacity for stable long-endurance drone flight
• 20C continuous discharge (120A) and 30C peak discharge (180A, ≤10s) for strong power output
• High-rate LiPo pouch cells with ≥300 cycles and 80% capacity retention
• Low internal resistance ≤10mΩ per cell for high efficiency and stable voltage output

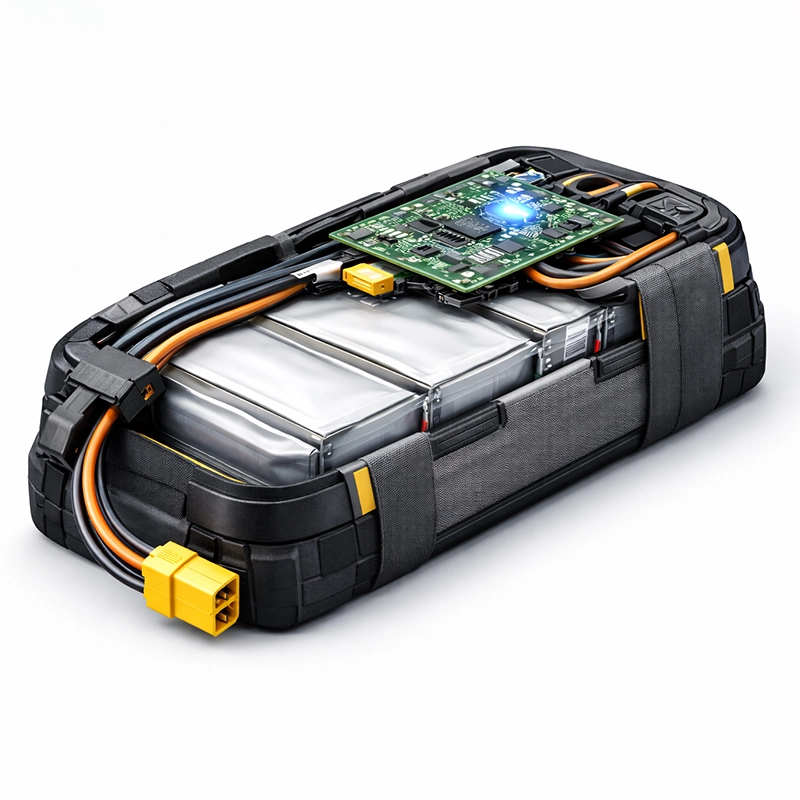

• Optional aluminum case or PVC shrink housing for durability and protection
• Flexible discharge connectors: XT60 / XT90 optional for wide drone compatibility
• Standard JST-XH balance connector for safe and balanced charging
• Customizable configuration, dimensions, and connectors to fit different drone models

Technical Specifications

Quick Overview

• 6S1P customizable smart LiPo battery pack for professional drones
• 22.2V nominal voltage and 6000mAh high capacity
• 133.2Wh energy for long-endurance UAV flight
• 20C continuous and 30C peak high-rate discharge capability
• ≥300 charge cycles with stable capacity retention
• Low internal resistance ≤10mΩ per cell for high efficiency
• Optional aluminum case or PVC shrink for strong protection
• XT60 / XT90 discharge connectors for wide drone compatibility
• Compact 150×60×40mm size and approx. 800g lightweight design

Application Areas

The Smart LiPo Battery Pack is widely used in professional drone and UAV fields that require high power and stable performance:

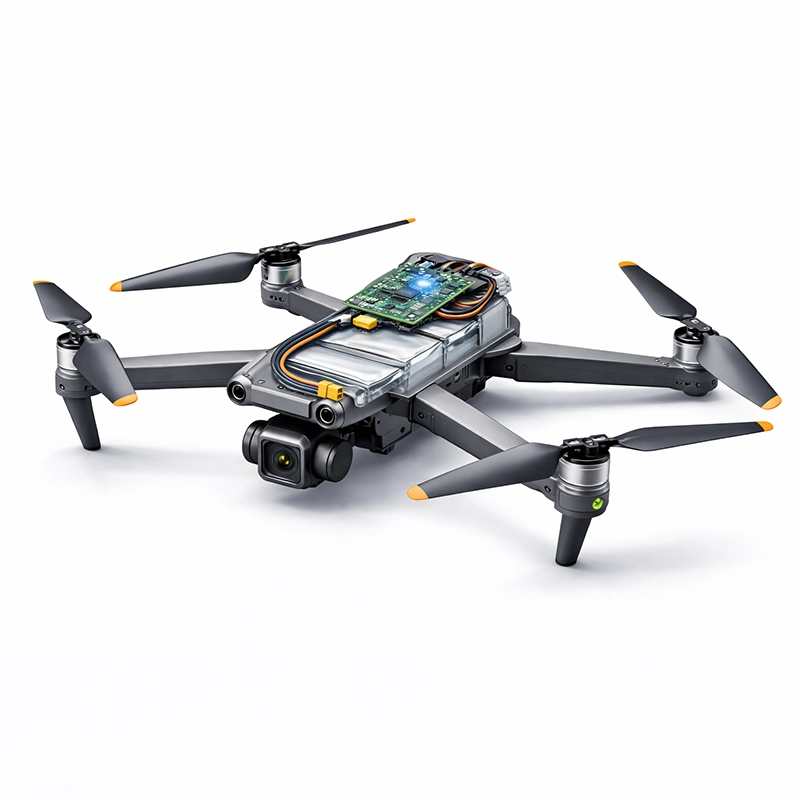

• Consumer and professional aerial photography drones
• Industrial drones for power line, pipeline, and infrastructure inspection
• Mapping and surveying UAV systems for geographic data collection
• Long-endurance commercial drones for logistics and monitoring tasks
• FPV racing drones and high-performance drone platforms
• Search and rescue, emergency, and public safety UAVs
• Agricultural spraying and plant protection drones
• Custom industrial UAV and unmanned system applications
