LTO Battery 10Ah Max 300A Discharge Lifecycels 20000 Times Support -30℃ Low Temperature

Our LTO Battery is a high – performance energy storage solution. With a rated capacity of 10Ah at a 1C rate discharge capacity and a minimum capacity of 9.8Ah, it ensures reliable power delivery. The nominal voltage of this battery is 2.3V, which is suitable for a variety of applications that require stable low – voltage power sources.

The battery features an extremely low internal impedance of ≤0.5mΩ, enabling efficient energy transfer and reducing power loss during charging and discharging. It can handle a maximum discharge current of 300A, and the recommended constant current for discharge is 100A (10C) under standard conditions with an end – of – discharge voltage of 1.5V. For charging, the recommended constant current is 30A (3C), and it can be fast – charged with a constant current of 100A up to a charge voltage of 2.7V.

This LTO Battery finds its applications in various fields. It is ideal for electric vehicles, providing high – power output for quick acceleration and regenerative braking. In the renewable energy storage sector, it can store excess energy from solar or wind power systems. It is also suitable for use in industrial backup power systems to ensure continuous operation during power outages.

Product Features

• High rated capacity of 10Ah with stable 1C rate discharge performance.
• Low internal impedance (≤0.5mΩ) for efficient energy transfer.
• High maximum discharge current of 300A, suitable for high – power applications.
• Flexible charging options including fast – charge with 100A constant current.
• Long cycle life of 20000 cycles at 100% depth of discharge (DOD), ensuring long – term use.
• Wide operating temperature range from – 30°C to 70°C for charging and discharging, and – 40°C to 70°C for storage.
• Stable nominal voltage of 2.3V for consistent power supply.
• High – quality appearance with no break, distortion, contamination, or leakage.
• Versatile applications in electric vehicles, renewable energy storage, and industrial backup power systems.

Product Specifications

Short Description

• Rated Capacity: 10Ah
• Minimum Capacity: 9.8Ah
• Internal Impedance: ≤0.5mΩ
• Nominal Voltage: 2.3V
• Max Discharge Current: 300A
• Cycle Life: 20000 cycles
• Charging Temp: -30~70°C
• Discharging Temp: -30~70°C
• Storage Temp: -40~70°C

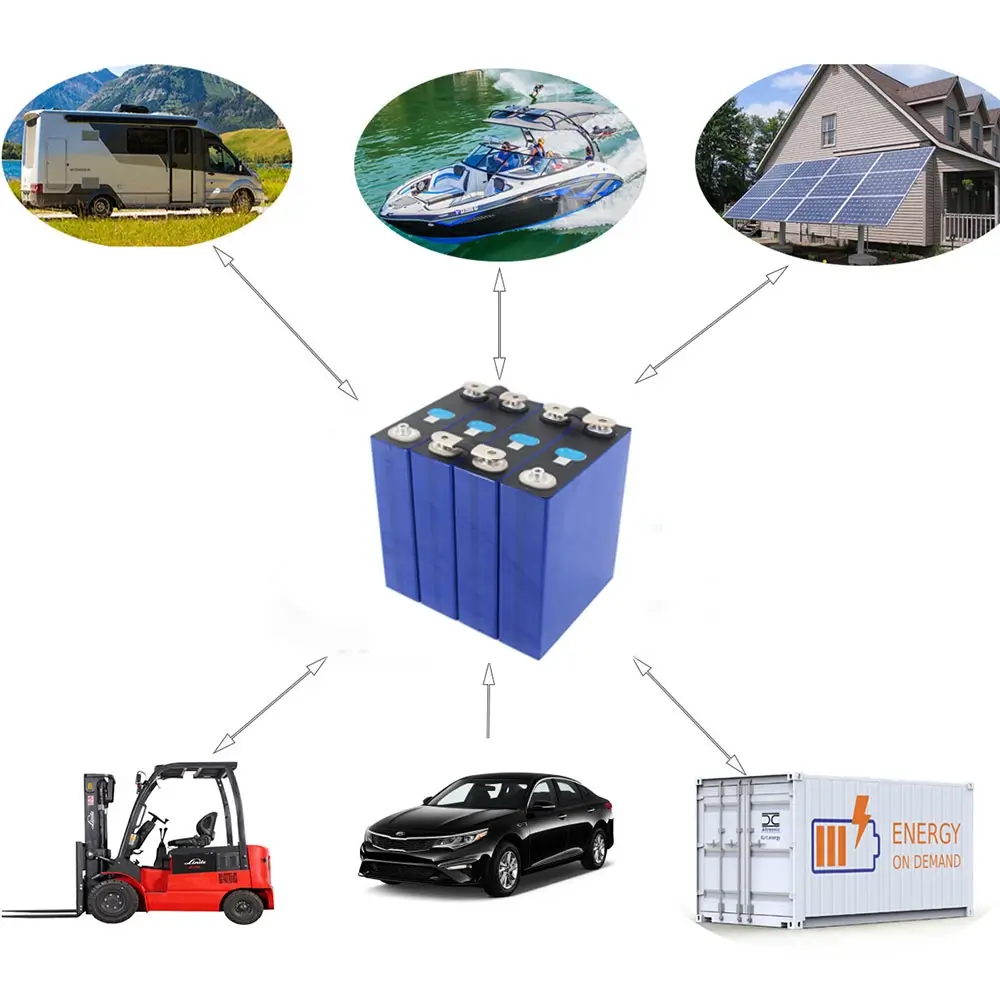

Application Areas

Our LTO Battery is widely used in the following areas:

• Electric Vehicles: For high – power output during acceleration and regenerative braking.
• Renewable Energy Storage: Storing excess energy from solar and wind power systems.
• Industrial Backup Power: Ensuring continuous operation of industrial equipment during power outages.
• Uninterruptible Power Supplies (UPS): Providing immediate power backup for critical systems.
• Grid Energy Storage: Helping to balance the electricity grid by storing and releasing energy as needed.
• Portable Power Tools: Offering long – lasting and high – power energy for on – the – go use.
• Electric Bicycles and Scooters: Enabling longer rides and better performance.
• Marine Applications: Powering small boats and marine equipment.
• Aerial Vehicles: Such as drones, providing reliable power for flight.
