Product Introduction

Discover our top – of – the – line 16Ah Solid State Battery, a high – performance power solution with advanced solid state technology at its core. With a nominal voltage of 3.95V/cell (Can be series in different voltage ), it can be configured to meet diverse power requirements. The battery offers a capacity of 16000mah/22000mah, ensuring long – lasting energy supply for your devices.

It can handle a max continuous current of 5C 80A and a peak continuous current of 10C 160A, making it suitable for high – power applications. Operating at a working temperature of -30℃, it performs reliably in challenging environments. This battery is especially designed for applications like For 100 – 105kg drones/Muti – rotor drone /Spraying drone/Long Range drone/, providing the necessary power for efficient operation.

Product Features

• Advanced NCM811 solid state technology for enhanced safety and performance.
• Flexible capacity options of 16000mah and 22000mah to suit different needs.
• Configurable nominal voltage to match various device requirements.
• High current capabilities with max and peak continuous currents for power – hungry applications.
• Wide working temperature range for operation in harsh conditions.
• Comprehensive certifications including MSDS, UN38.3, CE, and ROHS for quality assurance.
• Quick sample lead time of 1 – 2 working days for fast evaluation.
• Long – term warranty of over 6 – 12 months for peace of mind.

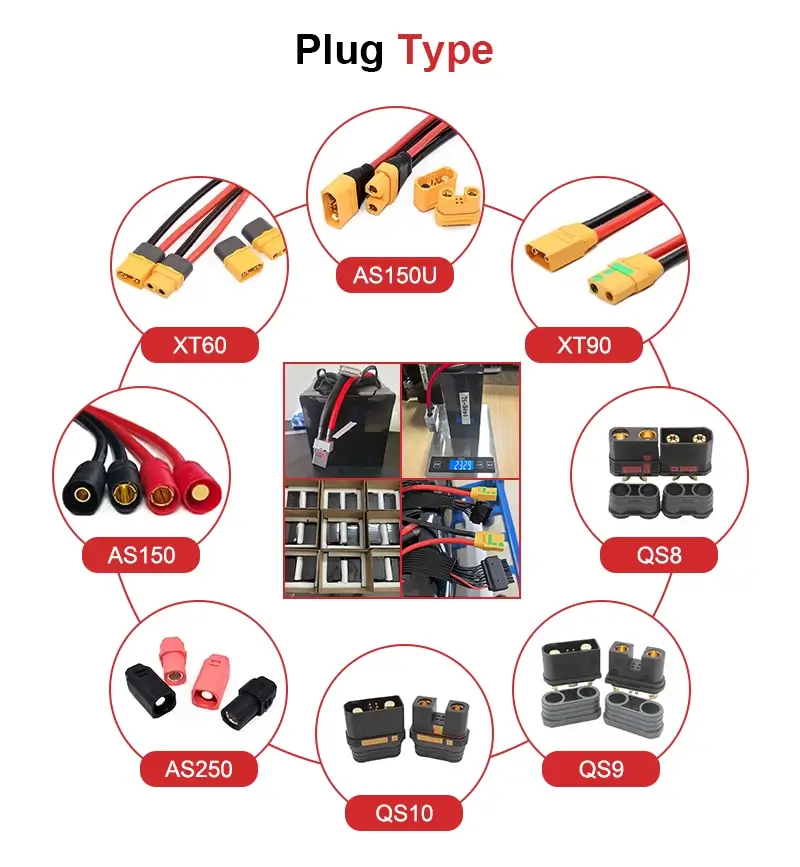

• Customizable logo and connector options based on client design.

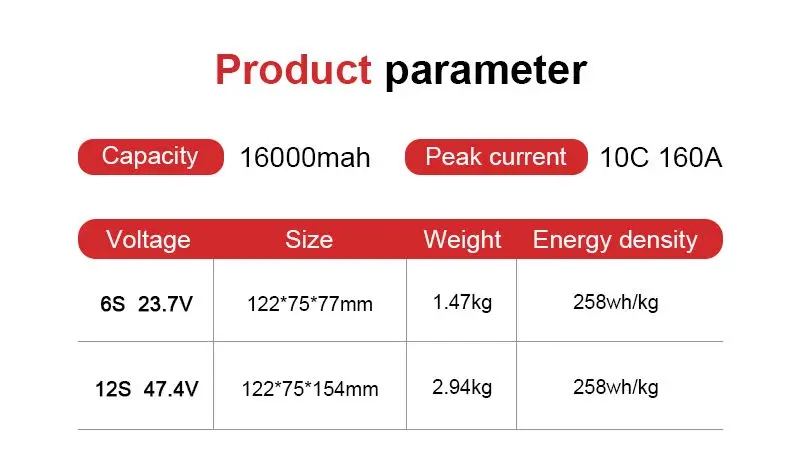

Product Specification Table

Brief Description

• Battery Type: solid state 3.95V
• Capacity: 16000mah/22000mah
• Nominal Voltage: 3.95V/cell (Can be series in different voltage )
• Pack Dimension: 125*75*74mm(16000mah 6s)
• Max Continuous Current: 5C 80A
• Peak Continuous Current: 10C 160A
• Working Temperature: -30℃
• Certificates: MSDS/UN38.3/CE/ROHS/
• Warranty: Over 6 – 12 Months

Application Fields

The 16Ah Solid State Battery is specifically designed for the following applications:

• 100 – 105kg drones: Provides sufficient power for large – scale drone operations.
• Muti – rotor drones: Enables stable and long – lasting flight for multi – rotor drone platforms.
• Spraying drones: Ensures continuous operation for agricultural and industrial spraying tasks.
• Long Range drones: Offers the energy needed for extended – range drone missions.
